FD32-150
Distributed Wind Power Main Models

Product FeaturesDownload

  • ➢ Low-speed permanent magnet generator, direct drive gearless transmission design.
  • ➢ Active pitch control technology ensures output power stability in strong wind.
  • ➢ Multiple safety protection for individual pitch, mechanical, electromagnetic brakes and active yawing.
  • ➢ Equipped with low-speed magnet generator with full-power converter, suitable for multinational grid -tie system.
  • ➢ Direct 400V to grid and connect to the nearby load distribution system, which is self-supply, self-consumption and sufficient electricity connected to grid, for efficient energy transmission.
  • ➢ SCADA remote monitoring system is the feature of real-time monitoring, report statistics, fault diagnosis and integrated operation & maintenance management.
  • ➢ Suitable for industrial park, seaport, oil-field, mine, village, expressway service area, etc.

Power Curve and Annual Energy Production

  • FD32 Series Power Curve

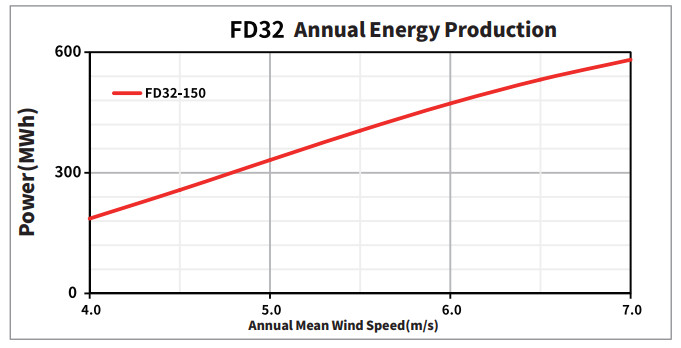

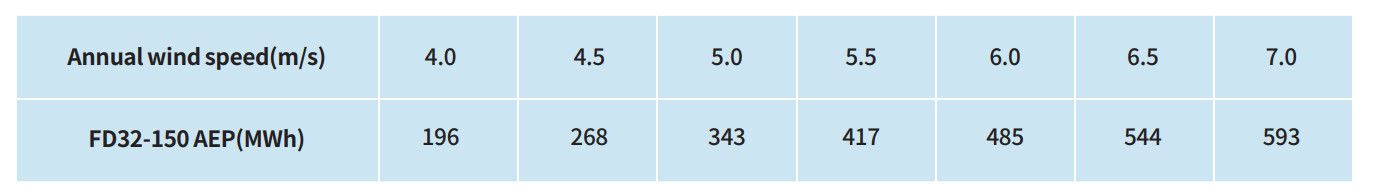

  • FD32 Series Annual Energy Production

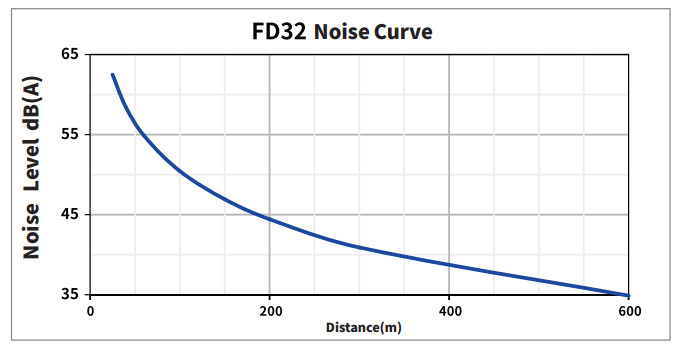

Note: 1. The power curve is the actual test value of the unit, only the power curve is provided externally; noise test conditions: wind speed 8m / s, distance about 25m
2. The power generation is calculated according to the power curve theory, and the actual unit power is related to the site temperature, altitude, wind condition, power grid and other factors

Technical parameter

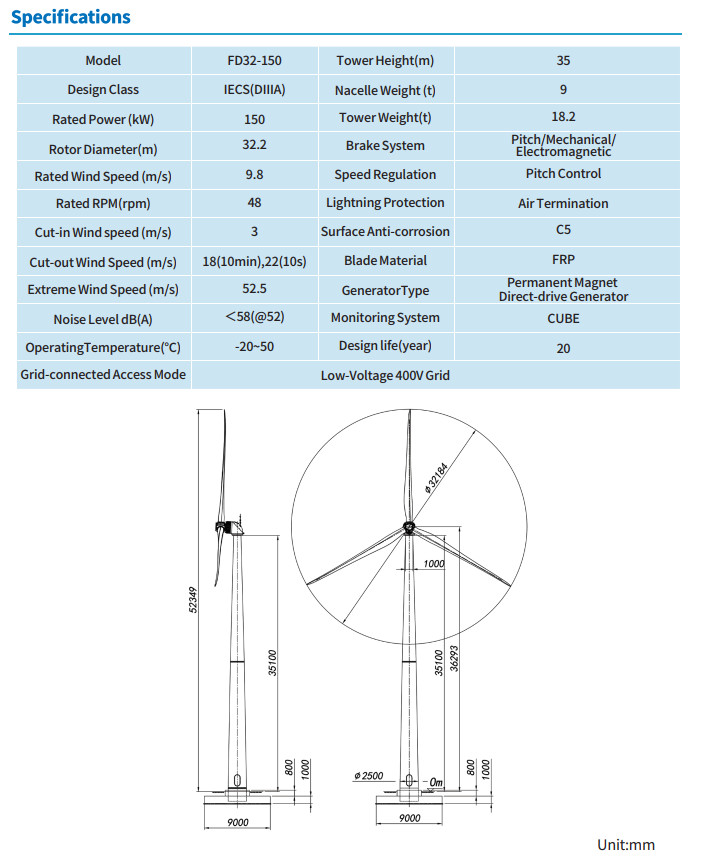

Specifications Controller
