Low-speed permanent magnet generator, direct drive gearless transmission design.
Active pitch control technology ensures output power stability in strong wind.
Multiple safety protection for individual pitch, mechanical, electromagnetic brakes and active yawing.
Equipped with low-speed magnet generator with full-power converter, suitable for multinational grid -tie system.
Direct 400V to grid and connect to the nearby load distribution system, which is self-supply, self-consumption and sufficient electricity connected to grid, for efficient energy transmission.
SCADA remote monitoring system is the feature of real-time monitoring, report statistics, fault diagnosis and integrated operation & maintenance management.
Suitable for industrial park, seaport, oil-field, mine, village, expressway service area, etc.
Power Curve and Annual Energy Production
FD56 Series Power Curve

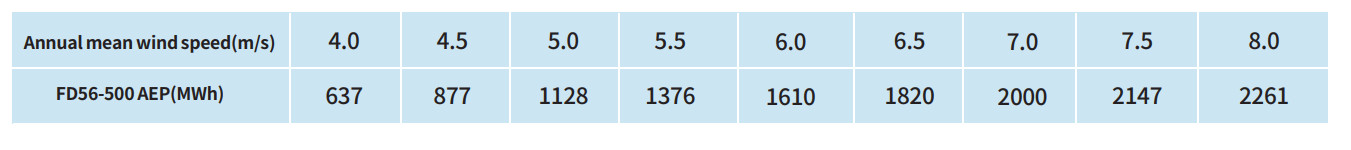

FD56 Series Annual Energy Production
Note:
1. The power curve is the actual test value of the unit, only the power curve is provided externally; noise test conditions: wind speed 8m / s, distance about 25m
2. The power generation is calculated according to the power curve theory, and the actual unit power is related to the site temperature, altitude, wind condition, power grid and other factors
