FD16 series WTGs are designed to the IEC61400-2 standard with sweeping area of 191 square meters or 2,055 square inches.
Compliant with CEI0-21, UL1741, CSA C22.2 NO.107.1-01, G59/2 grid-tied standards.
Permanent magnet direct-drive for generator with active pitch control technology.
Stall adjustment in strong wind to ensure stable power output.
Multiple safety protection for mechanical brake, electromagnetic brake and active yaw system.
Full power inverter isolation technology to ensure safe operation of WTG.
Remote SCADA online monitoring technology, which can realize real-time monitoring and adjustment.
High-efficiency electricity generation capability: FD16 series high-efficiency wind turbine technology characteristics with more power output in the same wind speed condition.
Low noise: FD16 series adopts advanced 9-phase generator technology and low-noise bearing design to control noise problems effectively and provide quiet and friendly operation environment.
Low EPC cost: integrate inverter, controller, and dump-load into the cabinet that can be independently applied outdoors, effectively eliminating the construction cost of room.
Simplified O&M: simplify operation and maintenance through integration of electrical cabinet.
Power Curve and Annual Energy Production
FD16 Series Power Curve

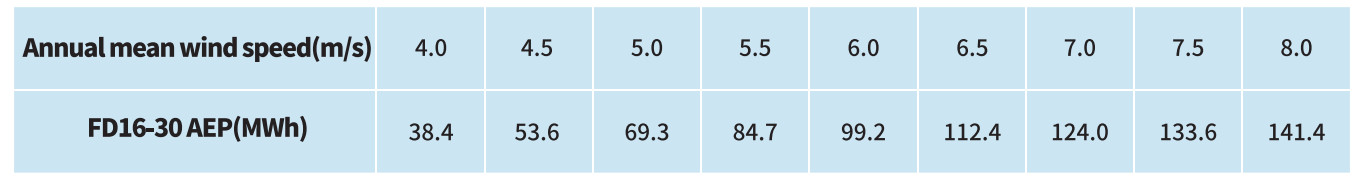

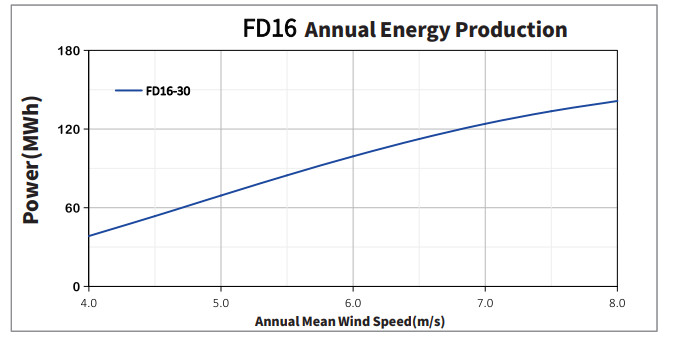

FD16 Series Annual Energy Production
Note:

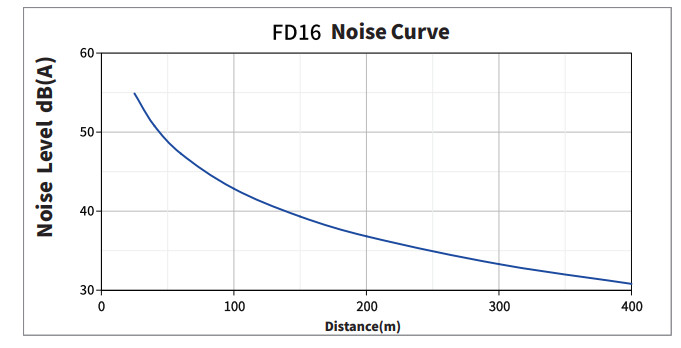

1. The power curve is the actual test value of the unit, only the power curve is provided externally; noise test conditions: wind speed 8m / s, distance about 25m
2. The power generation is calculated according to the power curve theory, and the actual unit power is related to the site temperature, altitude, wind condition, power grid and other factors
